Typical dedicated server hosting deployment consist of routers, switches and servers. Service provider will connect to multiple ISP (upstream) for public Internet connectivity, some service provider will also provide a private network for remote management and private network communication between customer servers.

Private network is commonly access via VPN connection (Virtual Private Network) using IPSec, PPTP, L2TP protocols.

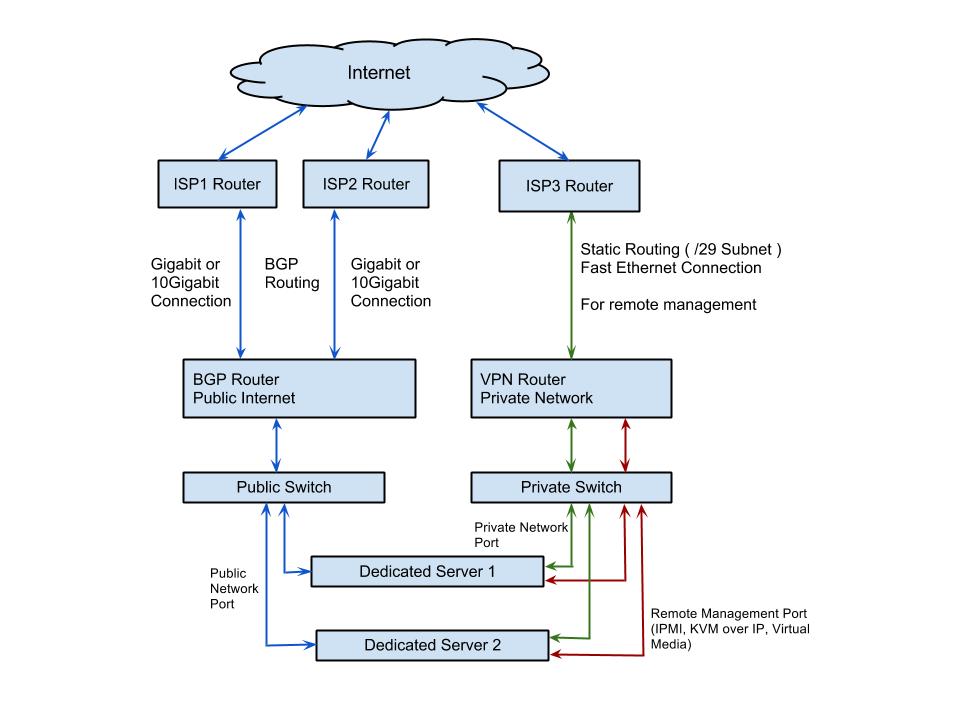

Dedicated Server Deployment Diagram

(To download: Right Click the link and choose "Save As")

Download Dedicated Server Deployment Diagram in PNG format
Download Dedicated Server Deployment Diagram in JPEG format
Download Dedicated Server Deployment Diagram in PDF format
